Name: HLZ-62KDHA
Brand: HUNT ELECTRONIC CO., LTD.
SKU: NO2107

HLZ-62KDHA

Explosion-proof H.264+ 2MP Motorized Bullet

ATEX & IECEx Certified Explosion-Proof Design
1080P@60FPS
Starvis Sensor
30X Built-in Zoom Lens
H.264⁺ / H.264 / M-JPEG Video Compression
Support Wiper for Window Clean
IR LED Built-in 100(M)
Power over Ethernet (PoE)
IR Cut Filter Mechanism
Day & Night Manual Switch Time Control
Smart Stream
Region of Interest (ROI) Function
IP68, IP69, IK10
NEMA 4X
Support iPhone/ Android/ iPad
SDK for Software Integration
Free Bundle 36Ch Recording Software

Product Name

Explosion-proof H.264⁺ 2MP Motorized Bullet

Model

HLZ-62KDHA

Certification

ATEX	II 2G Ex db IIC T6 Gb	ATEX	II 2D Ex tb IIIC T85°C Db
IECEx	Ex db IIC T6 Gb	IECEx	Ex tb IIIC T85°C Db

Housing Material

AISI 316L Stainless Steel

Enclosure Certificate

IP68, IP69, IK10

Max. Resolution

1920x1080 (2MP)

Sensor

1/2.8" Sony Starvis CMOS Sensor

Lens

4.7-141mm 30X Bulid-in Zoom Lens

Sensitivity

Color: 0.005 Lux (AGC ON), B/W: 0.001 Lux (AGC ON)

FOV

30X Horizontal: 3.7°~59.2°, Vertical: 1.8°~33.7°

IR Distance (Optional)

8 x Units High Power, IR light Distance 100 (M)

Video Format

H.264⁺ / H.264 / MJPEG

Video Resolution

1920x1080@60fps, 1280x720@30fps, 640x360@30fps

Max. Streams

4 Streams

Audio Format

G.711 (64K) / G.726 (32K, 24K)

Audio

Support 2 way

Interface

DIx1, DOx1, Industrial 64GB Micro SD Card Built-in (Optional), RS485, RJ45, DC Jack

Cable Length

4 (M)

Network Protocol

IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, Samba, Bonjour, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G

Power Consumption

DC 12V Max.: 22W, PoE Max.: 24W
-40°C with Heater on (Optional Heater): 34W

Special Features

Region of Interest (ROI), Smart Stream, Motion Detection, Privacy Mask, Anti Fog, Tampering Detection, Corridor Mode, Push Video, P2P (Optional)

Wiper

Yes

Sunshield

Yes

Dimensions

Ø142.3 x H224 (mm)

Weight

6.8 (Kg)

Working Temp.

Normal
IR Off:-20°C~65°C / -4°F~149°F,
IR On: -20°C~50°C / -4°F~122°F,
Optional with Heater
IR Off: -40°C~65°C / -40°F~149°F,
IR On: -40°C~50°C / -40°F~122°F

◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands

Document	Type	Date	Version	Size	Download
Manual		20220609		5.2 Mb
Datesheet		20230707		2.2 Mb
IP Scanner		20180726		1.7 Mb

HLZ-62KDHA Accessories (AISI 316L)

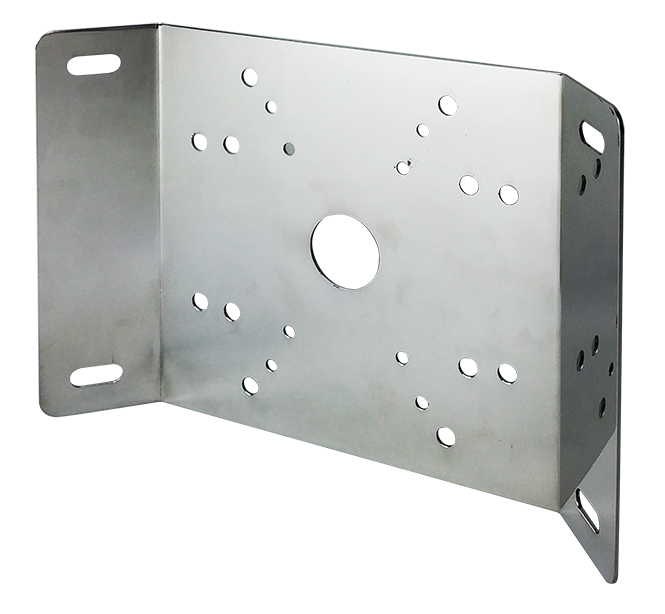

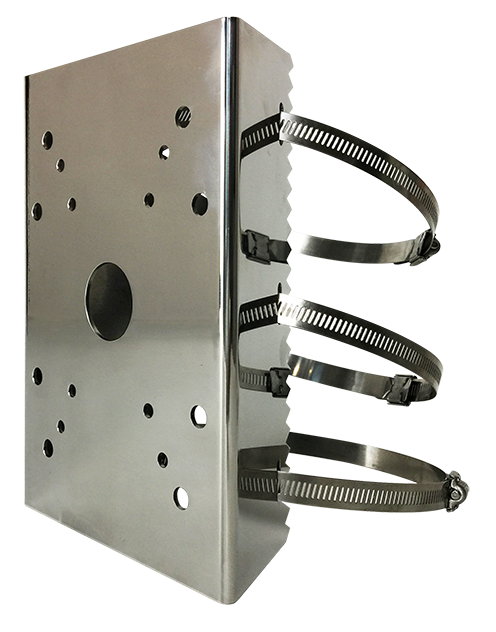

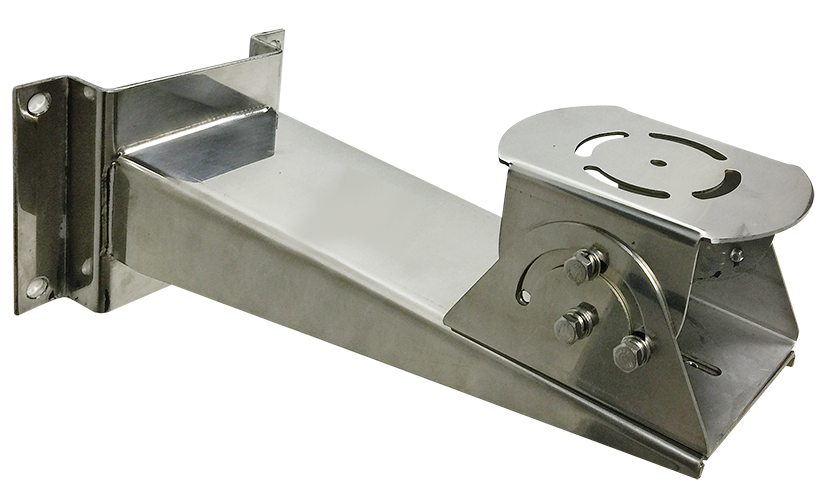

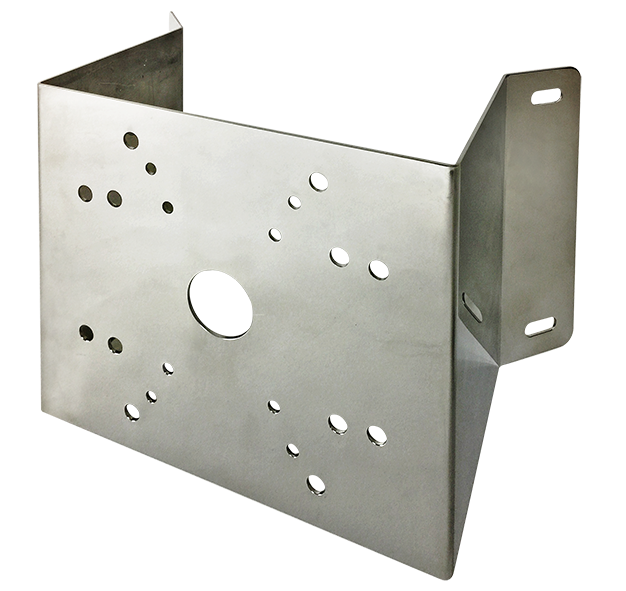

Wall Mount Bracket	Pole Mount Adapter	Convex Corner Mount Adapter

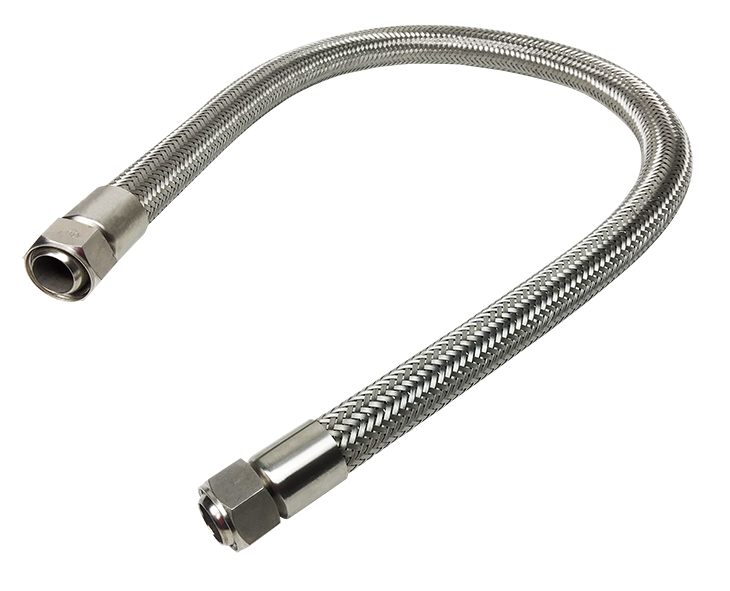

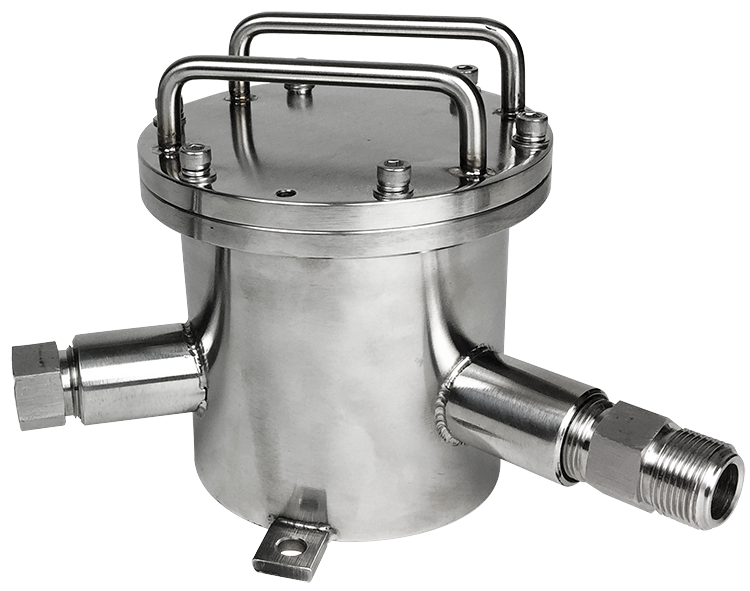

Convex Corner Mount Adapter	Pipe	Junction Box

Features

ATEX & IECEx Certified Explosion-Proof Design
1080P@60FPS
Starvis Sensor
30X Built-in Zoom Lens
H.264⁺ / H.264 / M-JPEG Video Compression
Support Wiper for Window Clean
IR LED Built-in 100(M)
Power over Ethernet (PoE)
IR Cut Filter Mechanism
Day & Night Manual Switch Time Control
Smart Stream
Region of Interest (ROI) Function
IP68, IP69, IK10
NEMA 4X
Support iPhone/ Android/ iPad
SDK for Software Integration
Free Bundle 36Ch Recording Software

Specification

Product Name

Explosion-proof H.264⁺ 2MP Motorized Bullet

Model

HLZ-62KDHA

Certification

ATEX	II 2G Ex db IIC T6 Gb	ATEX	II 2D Ex tb IIIC T85°C Db
IECEx	Ex db IIC T6 Gb	IECEx	Ex tb IIIC T85°C Db

Housing Material

AISI 316L Stainless Steel

Enclosure Certificate

IP68, IP69, IK10

Max. Resolution

1920x1080 (2MP)

Sensor

1/2.8" Sony Starvis CMOS Sensor

Lens

4.7-141mm 30X Bulid-in Zoom Lens

Sensitivity

Color: 0.005 Lux (AGC ON), B/W: 0.001 Lux (AGC ON)

FOV

30X Horizontal: 3.7°~59.2°, Vertical: 1.8°~33.7°

IR Distance (Optional)

8 x Units High Power, IR light Distance 100 (M)

Video Format

H.264⁺ / H.264 / MJPEG

Video Resolution

1920x1080@60fps, 1280x720@30fps, 640x360@30fps

Max. Streams

4 Streams

Audio Format

G.711 (64K) / G.726 (32K, 24K)

Audio

Support 2 way

Interface

DIx1, DOx1, Industrial 64GB Micro SD Card Built-in (Optional), RS485, RJ45, DC Jack

Cable Length

4 (M)

Network Protocol

Power Consumption

DC 12V Max.: 22W, PoE Max.: 24W
-40°C with Heater on (Optional Heater): 34W

Special Features

Region of Interest (ROI), Smart Stream, Motion Detection, Privacy Mask, Anti Fog, Tampering Detection, Corridor Mode, Push Video, P2P (Optional)

Wiper

Yes

Sunshield

Yes

Dimensions

Ø142.3 x H224 (mm)

Weight

6.8 (Kg)

Working Temp.

Normal
IR Off:-20°C~65°C / -4°F~149°F,
IR On: -20°C~50°C / -4°F~122°F,
Optional with Heater
IR Off: -40°C~65°C / -40°F~149°F,
IR On: -40°C~50°C / -40°F~122°F

◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands

Download

Document	Type	Date	Version	Size	Download
Manual		20220609		5.2 Mb
Datesheet		20230707		2.2 Mb
IP Scanner		20180726		1.7 Mb

Dimensions

Accessories

HLZ-62KDHA Accessories (AISI 316L)
Wall Mount Bracket	Pole Mount Adapter	Convex Corner Mount Adapter

Convex Corner Mount Adapter	Pipe	Junction Box
