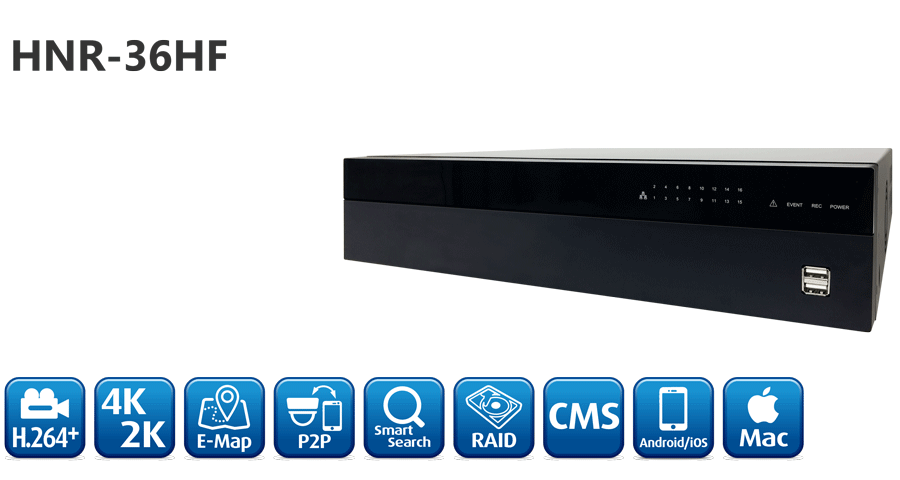

HNR-36HF
36CH 4K2K H.264+ Standalone NVR
Features
|
Specifications
| Model | HNR-36HF | |
| Video | ||
| Video Input | 36 Channel | |
| Video Format | H.264+ / H.264 | |
| IP Camera Max. Resolution | Up to 8M pixel Resolution | |
| Throughput | 300 Mbps | |
| System | ||
| OS | Embedded Linux | |
| Interface | Ethernet | RJ-45, 10/100/1000 Mbps x2 |
| Video Output | VGA x1, HDMI x1 | |
| USB | USB3.0 x1, USB2.0x2 | |
| Audio | Ø3.5mm Stereo Jack, Audio Input x1, Audio Output x1 | |
| GPIO | Alarm Input x4 / Relay Output x1 | |
| RS485 | D+, D- | |
| Power Input | AC100~240V | |
| Power Consumption | 9.84W (Not Include PoE Output and HDD) | |
| Record & Playback | ||
| Recording Mode | Manual, Schedule, Alarm Trigger, Event, Motion, Overwrite | |
| Alarm pre Record | 5-60 seconds | |
| Search Mode | Smart Search / Time Search / Event Search | |
| Storage & Backup | ||
| Storage | SATA HDD x6 | |
| E-SATA | x2 | |
| RAID | RAID 0/ 1/ 5 (Optional) | |
| External Storage | USB Backup, Remote Browser Backup, FTP, Samba | |
| Network Client | ||
| Browser | Windows IE 11 | |
| Remote Online Client | Max. 10 Online User | |
| Remote APP | Support iOS/ Android | |
| Dimensions & Operating Temperature | ||
| Dimensions | W430 x H88 x D422 (mm) | |
| Weight | 6 Kg (without HDD) | |
| Operating Temperature | -10°C~55°C / 14°F~131°F | |
| ◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands | ||
Download
| Document | Type | Date | Version | Size | Download |
| Manual | 20240927 | 11.2 Mb |  |
||
| Datesheet | 20220726 | 1.0 Mb | |
||
| IPScanner | 20180726 | 1.7 Mb | |
Dimensions
 |
